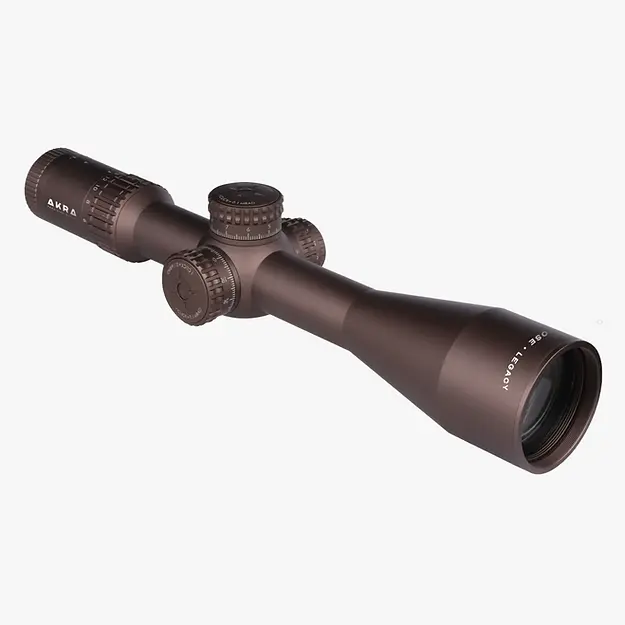

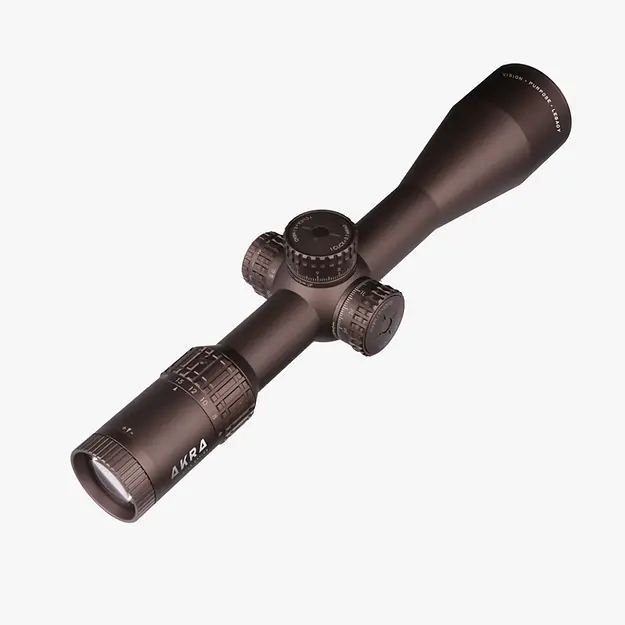

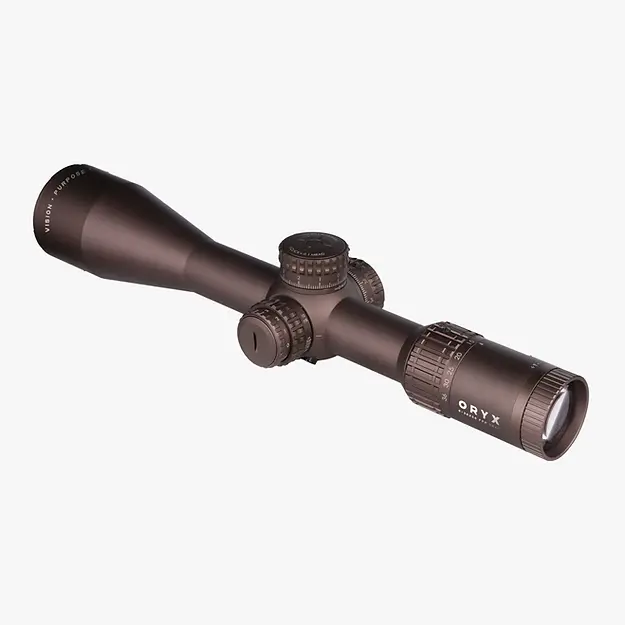

See beyond the ordinary with the ORYX 6-36x56 FFP MRAD.

• PRODUCT INFO

  Just as the Oryx Antelope boasts some of the sharpest vision in the wild, the ORYX 6-36x56 FFP MRAD scope, featuring our premium ED X glass, enhances your vision to unparalleled levels. Available in a limited edition Burnt Bronze finish, this optic not only performs but also ensures you stand out in any environment.

SPECIFICATIONS

Model - ED 6-36x56 FFP Magnification Value (Variable) - 6-36 Objective Lens Diameter - 56 Ocular Lens Diameter - 41 Lens Coating - Fully Coated Number of Lenses - 14 Body Tube Diameter - 34mm Length - 370mm Construction Material - A6061-T6 Construction type (1 / 2 Piece) - 1 PIECE Color / Finish - Burnt Bronze Waterproof - 1m 30Min Fogproof - Yes Shockproof - 1000g 1000Times Ocular Focus - Yes Side Focus - Yes Parallax Adjustment Range - 10yds-∞ Windage Adjustment Range - Elevation Adjustment Range - 37 MRAD Click Value - 0.1 MRAD Reticle Type (Etched / Wire) - Etched Reticle Design - Any Type Eye Relief - 100mm Exit Pupil - 9.3mm-1.55mm Field of View (FOV) - 20.5ft-3.42ft (3.92°-0.65°) Front focal plane - First focal plane Resolution (enter Axis) - 3' Ocular Outside Diameter - 46 Diopter Compensation - +2/-3

Torque Settings:

Ring Bases on Picattiny - 40in.lbsScope Mounts - 15-18in.lbs

When your scope is mounted and levelled by your gunsmith, please remove the Zero Stop which is located inside the Elevation turret before sighting in. Remove the elevation turret cap by unscrewing the turret cap screw with the plastic tool provided in your scope box. Gently pull the turret cap off, and find the Zero Stop inside. Loosen the 3 little grubscrews which hold the Zero Stop in place and remove the Zero Stop. Now you can return the turret cap and continue sighting in your scope. After you have sighted in your scope and zeroed it on the desired distance, you can tighten the zero stop as before!

WHAT'S IN THE BOX:

- ORYX 6-36x56 FFP MRAD Scope - 34mm Medium Picatinny Style Rings - Throw lever - Sunshade - Set of Scope Flip-up Caps - Turret Tool *Illuminated Reticle - Uses CR 2032 battery (not included)

WARRANTY

AKRA Precision Optics offers a full lifetime warranty on all optics. If at any time during the guarantee period a AKRA Precision Optics product is found to have a defect in material or workmanship, AKRA Precision Optics will, repair or replace it free of charge.
