Overview
When success rides on the perfect shot, rely on the exceptional versatility and optical performance of Viper® HD. From big game to predators, there’s a proven model for every hunting application. Each member of the Viper® HD family delivers outstanding image clarity, resolution, and sharpness to ensure your target comes into view with sharp detail. Viper® HD also boasts enhanced features for unmatched accuracy at extended ranges while also excelling in the low light of dawn and dusk when game is most active.
Specifications
Magnification | 5-25x |
Objective Lens Diameter | 50 mm |
Focal Plane | First Focal Plane |

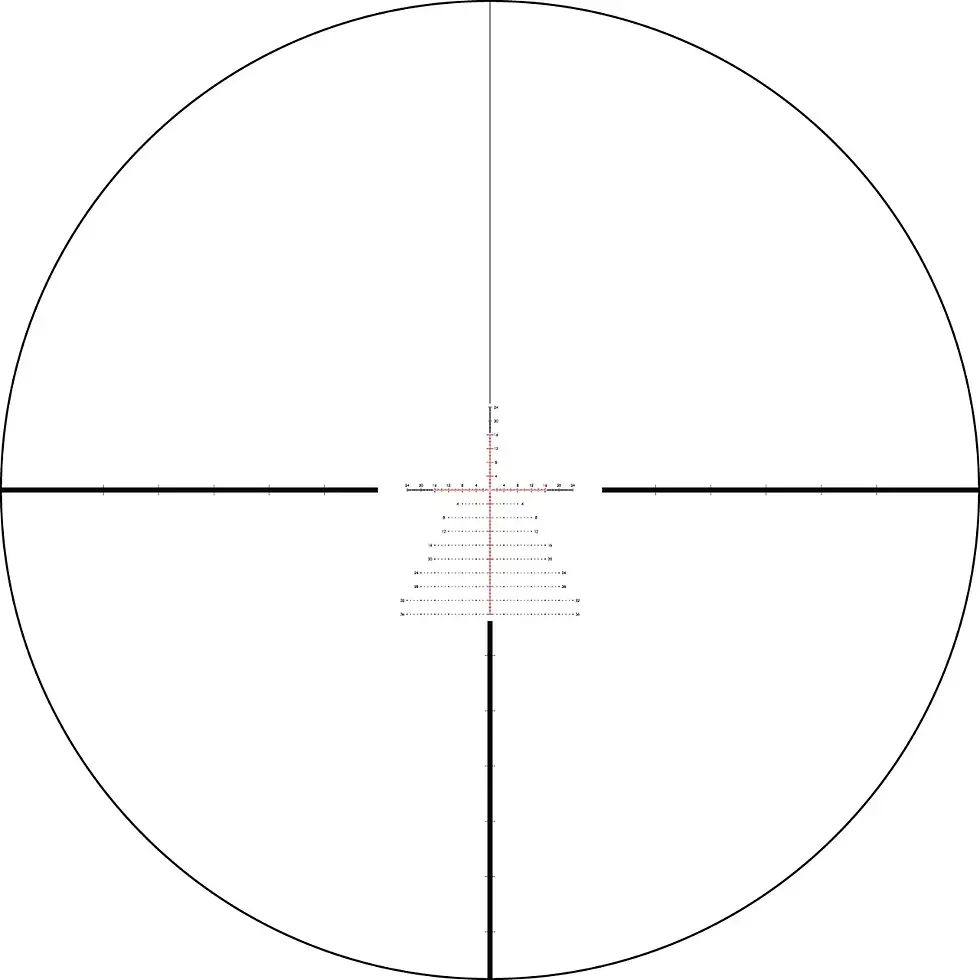

Reticle | VMR-4 (MRAD) |
Eye Relief | 3.4" |
Field of View | 23.6' - 4.7' @ 100 yds |
Turret Style | Exposed Elevation Capped Windage |
Tube Size | 30 mm |
Adjustment Graduation | .1 MRAD |
Travel Per Rotation | 10 MRAD |
Max Elevation Adjustment | 20 MRAD |
Max Windage Adjustment | 12.4 MRAD |
Parallax Setting | 20 yds. - ∞ |
Length | 15.2" |
Weight | 25.0 oz |
Total Elevation Adjustment w/ RevStop® installed | 18.9 MRAD |
Features
HD Optical System | Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration and provide outstanding color fidelity, edge-to-edge sharpness and light transmission. |
Illuminated Reticle | Provides precise aiming under low-light conditions. |
30mm Main Tube | For increased travel. |
Exposed Locking Elevation Turret | Integrated locking mechanism prevents accidental adjustments. Elevation turret provides fast, accurate, easily read elevation adjustments. |
First Focal Plane Reticle | Scale of reticle remains in proportion to the zoomed image. Constant subtensions allow accurate holdover and ranging at all magnifications. |
RevStop® Zero System | For a rock-solid return to zero after turret adjustments. |
Fully Multi-Coated Lenses | Anti-reflective coatings on all air-to-glass surfaces provide increased light transmission for greater clarity and low-light performance. |
ArmorTek® | Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt. |
Argon Gas Purged | Gas purged and O-ring sealed for fogproof and waterproof performance in all conditions. |
Fast Focus Eyepiece | Allows quick and easy reticle focusing. |
Aircraft-Grade Aluminum | Constructed from a solid block of aircraft-grade aluminum for strength and rigidity. |
Low Glare Matte Black Anodize | Corrosion and wear resistant anodization provides low-glare matte surface and helps camouflage the shooter's position. |
Single-Piece Tube | Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness. |
Waterproof | Designed to withstand harsh weather conditions. |
Fogproof | Nitrogen gas purging prevents internal fogging over a wide range of temperatures. |
Shockproof | Designed to withstand the highest levels of recoil and impact. |
What's in the box
Included in the Box
Neoprene Cover
Sunshade
RevStop® Zero Ring
Custom Turret Tool
CR2032 Battery
Lens Cloth
